AgjGd::linebreaksfortext Example: Using the Parameters

The three optional flags are demonstrated a pair at a time, each with the same text rendered once with the flag off and once with it on. $attemptToBreakOnHyphens breaks a hyphenated word across lines, $forceBreakOnSingleWords splits a word too long to fit on a line of its own and $preventWidows avoids leaving a single word stranded on the final line.

Source Code: examples/linebreaksfortext/02-using-the-parameters.php

<?php

/**
 * AgjGd Example (linebreaksfortext: Using the Parameters)
 *
 * Copyright (c) 2018–2026 Andrew G. Johnson <andrew@andrewgjohnson.com>
 * Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated
 * documentation files (the "Software"), to deal in the Software without restriction, including without limitation the
 * rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to
 * permit persons to whom the Software is furnished to do so, subject to the following conditions:
 * The above copyright notice and this permission notice shall be included in all copies or substantial portions of the
 * Software.
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
 * WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR
 * COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR
 * OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
 *
 * PHP version 8
 *
 * @category  AndrewGJohnson
 * @package   AgjGd
 * @author    Andrew G. Johnson <andrew@andrewgjohnson.com>
 * @copyright 2018–2026 Andrew G. Johnson <andrew@andrewgjohnson.com>
 * @license   https://opensource.org/licenses/mit/ The MIT License
 * @link      https://github.com/andrewgjohnson/AgjGd
 */

use AndrewGJohnson\AgjGd;

// Load the AgjGd class directly from source, or fall back to the Composer autoloader
if (file_exists('../../source/AndrewGJohnson/AgjGd.php')) {
    require_once '../../source/AndrewGJohnson/AgjGd.php';
} elseif (file_exists('../../vendor/autoload.php')) {
    require_once '../../vendor/autoload.php';
} elseif (!class_exists('AndrewGJohnson\AgjGd')) {
    die('AndrewGJohnson\AgjGd class not found');
}

// Set the parameters for our image
$width          = 325;
$height         = 700;
$imagePadding   = 20;
$fontSize       = 10;
$fontAngle      = 0;
$fontPath       = dirname(__DIR__) . '/NotoSans-Regular.ttf';
$hyphenatedWord = 'Jack-of-all-trades';
$longWord       = 'The longest English language word is “Pneumonoultramicroscopicsilicovolcanoconiosis.”';
$commonPhrase   = 'Hello world!';

// Create our image
$im = imagecreatetruecolor($width, $height);

if ($im === false) {
    die('Could not create the image');
}

// Fill our image with the background color
imagefill($im, 0, 0, (int)imagecolorallocate($im, 0xEE, 0xEE, 0xEE));

// Each entry is a heading followed by the same text broken with the parameter off and then on
$examples = [
    [
        'color'                   => (int)imagecolorallocate($im, 0x00, 0x00, 0x00), // Black
        'string'                  => '$attemptToBreakOnHyphens parameter',
        'attemptToBreakOnHyphens' => false,
        'forceBreakOnSingleWords' => false,
        'preventWidows'           => false
    ],
    [
        'color'                   => (int)imagecolorallocate($im, 0x00, 0x00, 0xFF), // Blue
        'string'                  => '(false, false, false)' . str_repeat(' ' . $hyphenatedWord, 7),
        'attemptToBreakOnHyphens' => false,
        'forceBreakOnSingleWords' => false,
        'preventWidows'           => false
    ],
    [
        'color'                   => (int)imagecolorallocate($im, 0x00, 0x99, 0x00), // Green
        'string'                  => '(true, false, false)' . str_repeat(' ' . $hyphenatedWord, 7),
        'attemptToBreakOnHyphens' => true,
        'forceBreakOnSingleWords' => false,
        'preventWidows'           => false
    ],
    [
        'color'                   => (int)imagecolorallocate($im, 0x00, 0x00, 0x00), // Black
        'string'                  => '$forceBreakOnSingleWords parameter',
        'attemptToBreakOnHyphens' => false,
        'forceBreakOnSingleWords' => false,
        'preventWidows'           => false
    ],
    [
        'color'                   => (int)imagecolorallocate($im, 0x00, 0x99, 0x99), // Cyan
        'string'                  => '(false, false, false)' . str_repeat(' ' . $longWord, 2),
        'attemptToBreakOnHyphens' => false,
        'forceBreakOnSingleWords' => false,
        'preventWidows'           => false
    ],
    [
        'color'                   => (int)imagecolorallocate($im, 0xFF, 0x00, 0x00), // Red
        'string'                  => '(false, true, false)' . str_repeat(' ' . $longWord, 2),
        'attemptToBreakOnHyphens' => false,
        'forceBreakOnSingleWords' => true,
        'preventWidows'           => false
    ],
    [
        'color'                   => (int)imagecolorallocate($im, 0x00, 0x00, 0x00), // Black
        'string'                  => '$preventWidows parameter',
        'attemptToBreakOnHyphens' => false,
        'forceBreakOnSingleWords' => false,
        'preventWidows'           => false
    ],
    [
        'color'                   => (int)imagecolorallocate($im, 0xFF, 0x00, 0xFF), // Purple
        'string'                  => '(false, false, false)' . str_repeat(' ' . $commonPhrase, 6),
        'attemptToBreakOnHyphens' => false,
        'forceBreakOnSingleWords' => false,
        'preventWidows'           => false
    ],
    [
        'color'                   => (int)imagecolorallocate($im, 0x99, 0x99, 0x00), // Yellow
        'string'                  => '(false, false, true)' . str_repeat(' ' . $commonPhrase, 6),
        'attemptToBreakOnHyphens' => false,
        'forceBreakOnSingleWords' => false,
        'preventWidows'           => true
    ]
];

// Place each example onto our image, stacking them down the page
$yCoordinate = $imagePadding * 2;

foreach ($examples as $example) {
    $transformedString = AgjGd::linebreaksfortext(
        $fontSize,
        $fontAngle,
        $fontPath,
        $example['string'],
        imagesx($im) - ($imagePadding * 2),
        PHP_EOL,
        $example['attemptToBreakOnHyphens'],
        $example['forceBreakOnSingleWords'],
        $example['preventWidows']
    );

    imagettftext(
        $im,
        $fontSize,
        $fontAngle,
        $imagePadding,
        $yCoordinate,
        $example['color'],
        $fontPath,
        $transformedString
    );

    $textDimensions = imagettfbbox($fontSize, $fontAngle, $fontPath, $transformedString);

    if ($textDimensions === false) {
        die('Could not measure the text');
    }

    $textTop    = min($textDimensions[1], $textDimensions[3], $textDimensions[5], $textDimensions[7]);
    $textBottom = max($textDimensions[1], $textDimensions[3], $textDimensions[5], $textDimensions[7]);

    $yCoordinate += ($textBottom - $textTop) + $imagePadding;
}

// Display our image
header('Content-Type: image/png');
imagepng($im);

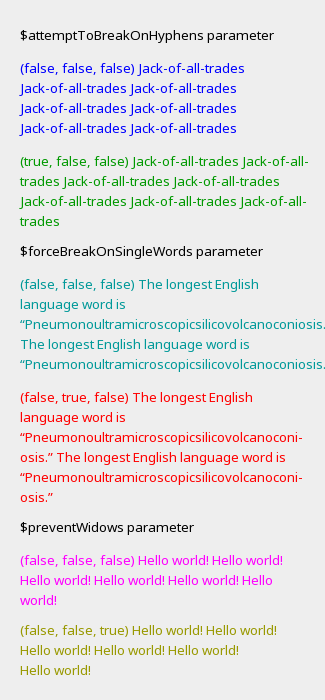

Expected Output: examples/linebreaksfortext/02-using-the-parameters.png
